Mastering the Pilot Vanishing Point: A Comprehensive Guide to Filling and Maintenance

The Pilot Vanishing Point—known in many circles as the "Capless"—is a marvel of stationery engineering. Since its debut in the 1960s, it has remained one of the most practical and beloved fountain pens on the market. By combining the sophisticated writing experience of a 14k or 18k gold nib with the one-handed convenience of a retractable ballpoint, Pilot created a tool that bridges the gap between traditional craftsmanship and modern utility.

However, because the Vanishing Point and its slimmer sibling, the Décimo, utilize a unique internal housing system, the filling process can feel counterintuitive to those accustomed to standard threaded fountain pens. Unlike a traditional pen where the nib is permanently fixed to the section, the Vanishing Point features a removable "nib unit" that contains the entire ink delivery system. Mastering this system is the key to enjoying a seamless writing experience.

Understanding the Anatomy of a Retractable Fountain Pen

Before you even open a bottle of ink, it is helpful to understand what is happening inside the barrel. When you click the knock (the button at the top), a spring-loaded mechanism pushes the nib unit forward, forcing a small metal "trap door" at the tip of the pen to swing open. When retracted, this door snaps shut, creating an airtight seal that prevents the nib from drying out.

This internal complexity means that you cannot simply dip the tip of the pen into ink. You must disassemble the chassis to access the heart of the instrument.

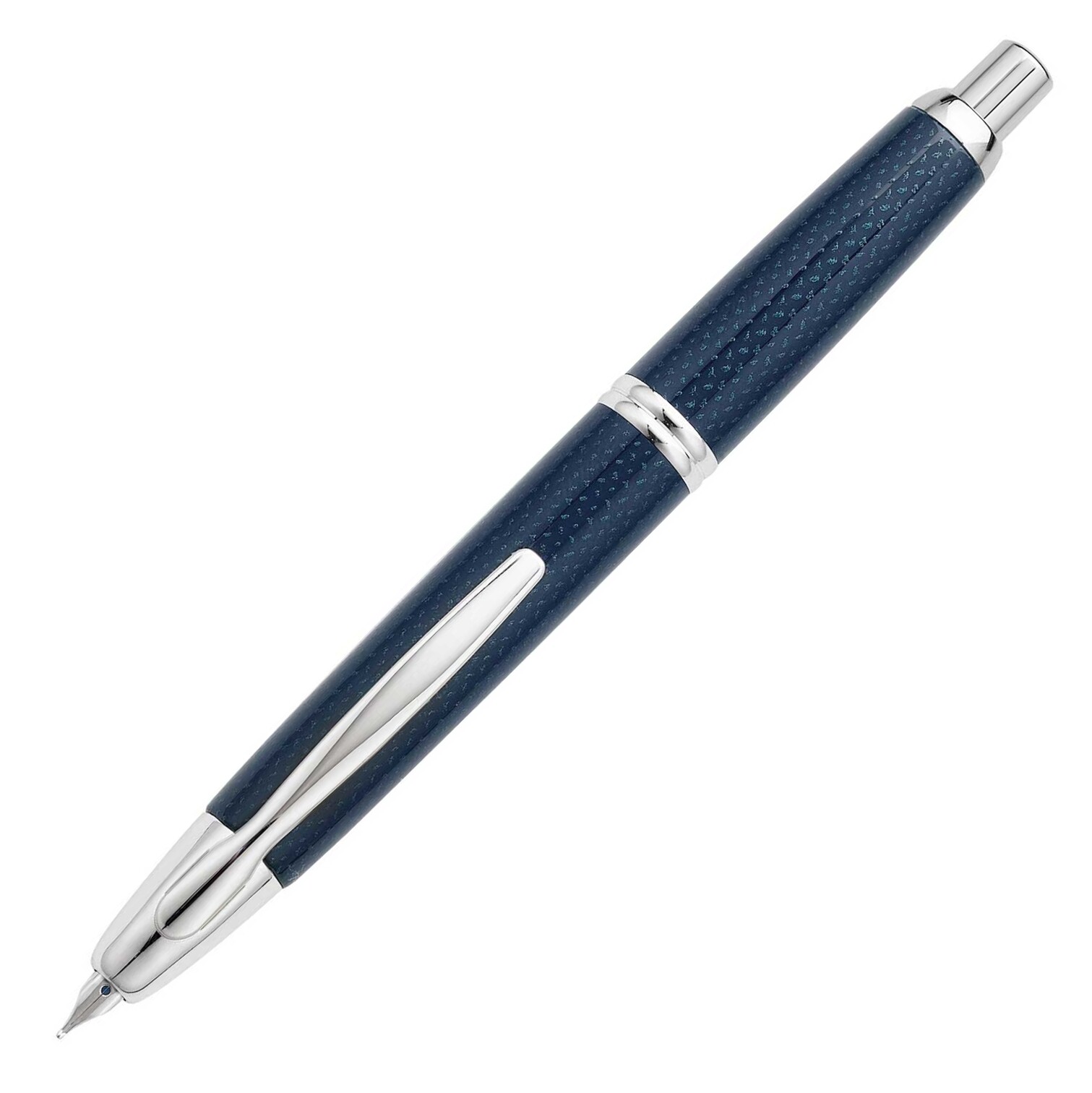

Pilot Vanishing Point Fountain P...

The Nib Unit: The Heart of the Pen

The nib unit is a long, slender assembly consisting of the gold nib, the feed, and the attachment point for your ink source. Because this unit is entirely removable, it is incredibly easy to swap nib sizes (from Extra Fine to Broad or even Stub) without purchasing a whole new pen body. However, because it is so slender, the ink capacity is somewhat more limited than larger piston-filled pens.

Filling with Bottled Ink: The Enthusiast’s Method

Using bottled ink is the preferred method for most enthusiasts because it opens the door to thousands of colors and specialized properties, such as shading, sheen, or permanent archival qualities. To use bottled ink, you will need the Pilot CON-40 converter, which is typically included with the pen.

Step-by-Step Converter Filling

1. Disassemble the Chassis: Unscrew the barrel at the midpoint. Carefully slide the nib unit out of the front half of the pen.
2. Prepare the Piston: Ensure the converter is firmly seated on the back of the nib unit. Turn the small knob at the end of the converter counterclockwise until the internal piston is moved all the way toward the nib.
3. The Submergence Rule: Dip the nib into your ink bottle. It is a common mistake to only submerge the tip; you must ensure the entire nib and the small "breather hole" on the feed are fully underwater.
4. Draw the Ink: Slowly turn the converter knob clockwise. You will see the ink rise into the reservoir.
5. The "Full Fill" Technique: Converters often trap air on the first draw. To get a maximum fill, turn the pen nib-up, flick the side of the converter to move air bubbles to the top, and slightly depress the piston to force the air out. Then, submerge the nib again and draw a second time.
6. Clean and Reassemble: Wipe the nib and feed with a lint-free cloth. Slide the unit back into the barrel, ensuring the small metal protrusion (the alignment notch) on the unit fits into the corresponding slot in the pen’s nose cone.

For those who enjoy the ritual of bottled ink but find the converter's capacity a bit small, you might consider exploring Fountain Pens vs. Calligraphy Pens: Understanding the Essential Differences for Enthusiasts to see how different ink delivery systems impact your writing sessions.

The Convenience of Ink Cartridges

For students, professionals on the go, or those who simply prefer a mess-free experience, Pilot’s proprietary cartridges are an excellent choice. They hold significantly more ink than the CON-40 converter (approx. 0.9ml vs 0.4ml) and are easily swappable in seconds.

The Critical Role of the Cartridge Cap

When you open a new Vanishing Point, you will find a small, silver metal tube. Many new users mistake this for packaging material and discard it—do not do this.

Because the Vanishing Point uses a clicking mechanism, the back of the ink source is constantly being struck by the internal plunger. A plastic cartridge is too soft to withstand this repeated pressure and would eventually crack or pop off, causing an ink disaster inside your pen. The metal cap slides over the cartridge to provide a rigid, protective shield.

How to Install a Cartridge

1. Remove the nib unit and pull out the empty converter or old cartridge.
2. Push the wide end of the new Pilot cartridge into the nib unit until you feel a "pop." This indicates the seal has been punctured.
3. Slide the metal cartridge cap over the cartridge.
4. Reassemble the pen, ensuring the alignment notch is correctly placed.

The "Syringe Fill" Hybrid Method

Many seasoned Vanishing Point users utilize a "best of both worlds" approach. By using a blunt-tip ink syringe, you can refill an empty Pilot cartridge with your favorite bottled ink. This gives you the massive color selection of bottled ink with the superior ink capacity and mechanical reliability of the cartridge-and-cap system.

This method is particularly useful if you are using your pen for long-form journaling. If you are currently looking for a high-quality place to record your thoughts, check out our guide on Finding Your Perfect Match: A Comprehensive Guide to Selecting the Best Journal for Your Writing Ritual.

Maintenance and Troubleshooting

Because the Vanishing Point has an internal "trap door," it requires slightly more attention than a standard fountain pen. If ink dries inside the nose cone, the door may stick or fail to seal properly, leading to the nib drying out prematurely.

Cleaning the "Trap Door"

Every few months, or if you notice the clicking mechanism feeling "crunchy," you should clean the front section of the pen.

• Remove the nib unit.
• Run lukewarm water through the front of the barrel (where the nib usually exits).
• You can use a soft-bristled Q-tip to gently clear away any dried ink around the hinge of the trap door.
• Ensure the section is completely dry before reinserting the nib unit.

Dealing with Ink Creep

"Ink creep" occurs when a small amount of ink pools on the top of the nib. While usually harmless, in a Vanishing Point, this ink can transfer to the inside of the trap door. If you see ink leaking from the tip of the pen while it is retracted, it is likely that the nib unit needs a quick wipe or the internal door needs the cleaning mentioned above.

Choosing the Right Pen: Vanishing Point vs. Décimo

While both pens use the exact same nib units and filling systems, the "best" choice depends on your hand size and weight preference.

• The Vanishing Point: Heavier, thicker, and more substantial. It is ideal for those who prefer a "pro" feel or have larger hands.
• The Décimo: Slimmer and lighter. It is often preferred by those who find the standard Vanishing Point too bulky for long writing sessions or who want a more pocket-friendly profile.

Regardless of which model you choose, the retractable fountain pen remains a pinnacle of functional art. By following these filling and maintenance steps, you ensure that your Pilot will remain a reliable companion for years to come.
